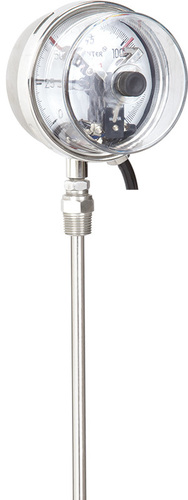

Analog Temperature Gauge

Analog Temperature Gauge
Analog Temperature Gauge
Product Code : 07
Product Description

Banking on our hi-tech manufacturing unit, we are able to manufacture, export and supply premium quality Analog Temperature Gauge that is used for measuring temperature. In order to manufacture this product as per the set industry standards, we use modern technology and the finest quality components. Offered Analog Temperature Gauge undergoes various tests prior to dispatching the delivery from our end to ensure its flawlessness and long service life.

Features:

  • High strength

  • Long working life

  • Robustness

  • Smooth operation



100MM Bottom Mtg Temp. Gauge With EI. Contact

"Pointer" Electric contact gauges are suitable for the measurement & control of line pressure / Temperature by switching 'ON & OFF' electrical equipment which eliminate the need of separate switches for equipment.

Construction Features

Dial Size

100mm & 150mm

Accuracy

+-1% full scale

Case & Bezel (IP- 65)

SS 304 Snap Action Bayonet type

Movement

SS 304

Pressure Element

SS 316 (< 70 bar 'C' Type/ > 70 bar Coil Type)

Socket

SS 304 / SS 316

Dial

Alumnium white painted with 270 degree black scale marking

Pointer

Al./ Brass, Zero adjustment/ Micro Zero Adjustment Pointer

Window

Acrylic glass

Blow Out Protection

Back side at 0.6 kg/cm2

Over Load Protection

125% of f.s.d. For < 150 kg/cm2


115% of f.s.d. For > 150kg/cm2

Joints

Argon arc welded

Mounting

Stem (Bottom), Panel Mounting, Flush Panel (Bracket Type)

Scale Range

Vacuum & Pressure up to 700 kg/cm2

Contact Details

380V AC/DC, 50 V A/ 30 watts, Current not exceeded 1 Amp.

Contact Type

Magnetic Single Contact (1 Nos, 1NC)


Double (1 No+NC, 1NC + 1NO, 2 NO, 2 NC)

Optional Features

  • Diaphragm Sealed with Electrical Contact available on request
  • LPD with Electrical Contact available on request

Application

Control & Regulation of industrial process. Monitoring of plants and switching of electric circuit. Power plants, Chemical & petrochemical industries, pump, motor, turbine etc.
