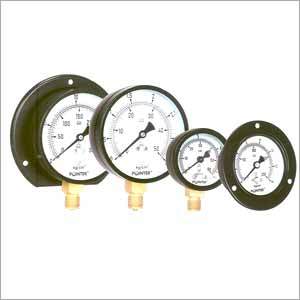

Commercial Utility Pressure Gauge

Commercial Utility Pressure Gauge
Commercial Utility Pressure Gauge
Product Code : 22
Product Description

We have evolved as a reputed manufacturer, exporter and supplier of premium quality Commercial Utility Pressure Gauge that is used to measure pressure. The offered pressure gauge is manufactured using high grade components as per the set industry standards. It works smoothly and has user friendly design. Prior to dispatching the delivery from our end, the offered Commercial Utility Pressure Gauge is tested on various parameters to ensure its flawlessness.

Features:

  • High strength

  • Smooth operation

  • Compact design

  • Accurate measurement

"Pointer" utility gauges are designed for long & reliable service under rugged condition.

Construction Features

Dial Size

40mm, 50mm, 63mm, 100mm, 150mm & 250mm

Accuracy

+-2% of full scale

Case & Bezel (IP- 65)

Drawn Steel black painted press fit type

Movement

Brass

Pressure Element

Brass (< 70 bar 'C' Type) SS 316 (> 70 bar Coil Type)

Socket

Brass

Dial

Aluminium white painted with 270 degree black scale marking

Pointer

Aluminium pointer with black finish

Window

Plain glass

Over Load Protection

125% of f.s.d. For < 150kg/cm2


115% of f.s.d. For > 150 kg/cm2

Joints

Soldering

Mounting

Stem (Bottom), Surface, Panel Mounting, Flush Panel (Bracket Type)

Connection

1/8, 1/4, 3/8, 1/2, BSP/NPT

Scale Range

Vacuum & Pressure up to 700 kg/cm2

Optional Features

Ammonia (NH3), Oxygen (O2), Freon Scale available on request.

Application

Pneumatic control System, Air conditioning, Pumps etc
