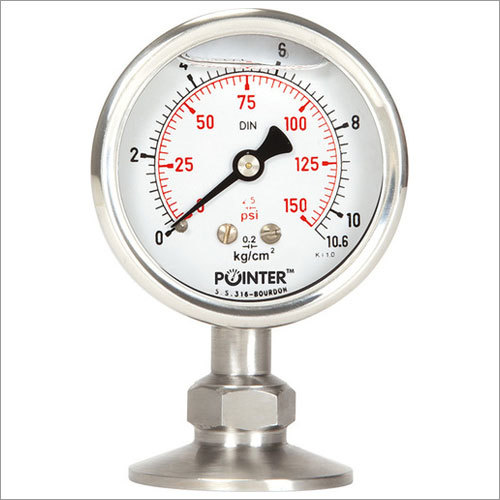

Diphragm Sealed Pressure Gauges

Diphragm Sealed Pressure Gauges
Diphragm Sealed Pressure Gauges
Product Code : DSPG-01
Brand Name : pointer
Product Description

Owing to our competency in this domain, we have listed ourselves amongst the reputed manufacturer, exporter and supplier of high quality Diphragm Sealed Pressure Gauges that are highly demanded in various industries. These are manufactured using premium quality raw material and advanced technology as per the set industry standards. Offered products are available in various specifications to meet the diverse needs of the clients. To ensure their flawlessness, the offered gauges are tested on various parameters by our quality controllers. We are offering these Diphragm Sealed Pressure Gauges at pocket-friendly costs.

Features:

  • Long working life

  • High strength

  • Accurate measurement

  • Dimensional accuracy

Construction Features

Dial Size

63mm, 100mm, 150mm & 250mm

Accuracy

+- 1% of full scale

Case & Bezel (IP-65)

SS 304 Snap Action Bayonet type/ Crimp type

Movement

SS 304

Pressure Element

SS 316 (< 70 bar 'C' /Type/ > 70 bar Coil type)

Socket

SS316

Dial

Aluminium white painted with 270 degree black scale marking

Pointer

Al./ Brass, Zero adjustment/ Micro Zero Adjusttmen Pointer

Window

Acrylic/Toughened/Safety glass

Blow Out Protection

On top/ On back side at 0.6 kg/cm2

Over Load Protection

125% of f.s.d. For < 150kg/cm2


115% of f.s.d. For > 150 kg/cm2

Joints

Argon arc welded

Mounting

Stem (Bottom), Surface, Panel Mounting, Surface with capillary extension

Scale Range

Vacuum, Compound & Pressure up to 420 kg/cm2

Sealed Unit

Upper Chamber Material

SS 304

Diaphragm Material

SS 316L/ Monel/ Hastalloy-C/ Tantalum or any other material. PTFE Coating can be provided if required

Lower Chamber

SS 304/ SS 316/ Monel or any other material (threaded/ Flange type)

Filling Fluid

Silicon Oil or suitable liquid as desired by the user

Optional Features

  • Different type of seals & connection available like
  • Different threaded type, Open Flange Type, Flush welded diaphragm type
  • Sandwitch flange (cell) type, Extended welded diaphragm type, Capillary extension type
  • SMS & TC Connection for food, Biochemical & pharmaceutical industries
  • Homogenizer flange (Round or Square) Type
  • Special Connection for Pulp & Paper Industries
  • Eco Model available on request

Application

Chemical, Petrochemical, Pulp & Paper, Food Processing industries, in water & sewage treatment plants and in electric power plant etc
