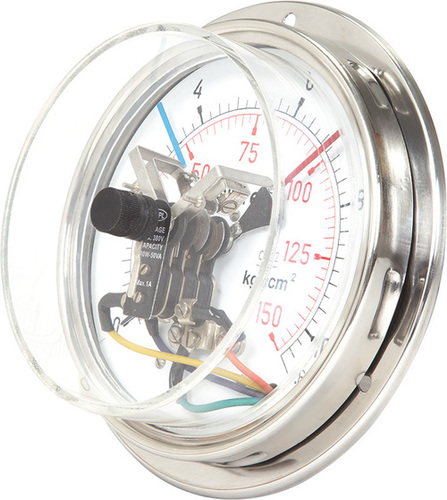

Electric Contact Pressure Gauge

Electric Contact Pressure Gauge
Electric Contact Pressure Gauge
Product Code : 06
Product Description

We hold expertise in manufacturing, exporting and supplying premium quality Electric Contact Pressure Gauge that is highly demanded in various industries. It is manufactured using innovative technology by our veteran professionals and is available in different specifications in order to meet the diverse requirements of the clients. Our quality controllers test the offered product on various parameters to ensure its flawlessness. The offered Electric Contact Pressure Gauge is available at cost effective prices.

Features:

  • Compact design

  • Accurate measurement

  • Long working life

  • Excellent strength



100MM Bottom Mtg Temp. Gauge With EI. Contact

"Pointer" Electric contact gauges are suitable for the measurement & control of line pressure / Temperature by switching 'ON & OFF' electrical equipment which eliminate the need of separate switches for equipment.

Construction Features

Dial Size

100mm & 150mm

Accuracy

+-1% full scale

Case & Bezel (IP- 65)

SS 304 Snap Action Bayonet type

Movement

SS 304

Pressure Element

SS 316 (< 70 bar 'C' Type/ > 70 bar Coil Type)

Socket

SS 304 / SS 316

Dial

Alumnium white painted with 270 degree black scale marking

Pointer

Al./ Brass, Zero adjustment/ Micro Zero Adjustment Pointer

Window

Acrylic glass

Blow Out Protection

Back side at 0.6 kg/cm2

Over Load Protection

125% of f.s.d. For < 150 kg/cm2


115% of f.s.d. For > 150kg/cm2

Joints

Argon arc welded

Mounting

Stem (Bottom), Panel Mounting, Flush Panel (Bracket Type)

Scale Range

Vacuum & Pressure up to 700 kg/cm2

Contact Details

380V AC/DC, 50 V A/ 30 watts, Current not exceeded 1 Amp.

Contact Type

Magnetic Single Contact (1 Nos, 1NC)


Double (1 No+NC, 1NC + 1NO, 2 NO, 2 NC)

Optional Features

  • Diaphragm Sealed with Electrical Contact available on request
  • LPD with Electrical Contact available on request

Application

Control & Regulation of industrial process. Monitoring of plants and switching of electric circuit. Power plants, Chemical & petrochemical industries, pump, motor, turbine etc.
