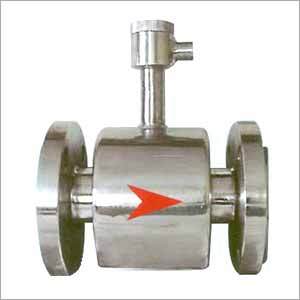

Electromagnetic Flow Meters

Electromagnetic Flow Meters
Electromagnetic Flow Meters
Product Code : S Series
Product Description

Leveraging on our vast industrial experience, we are engaged in offering Electromagnetic Flow Meters. These flow meters are used for conductive liquids such as raw water, chilled water, effluents, potable water and industrial chemicals. Our professionals manufacture the offered products using high grade raw material and modern technology. The offered products are available in various specifications to meet the diverse needs of the clients. Our precious clients can avail these Electromagnetic Flow Meters at industry leading prices.

Features:

  • Compact design

  • Low maintenance

  • Long working life

  • Accurate measurement

"Pointer" full bore flow meter is a cost effective flow meter for conductive liquids such as Raw Water, Chilled water, effluents, Potable water and industrial chemicals. Using time proven electromagnetic flow metering principle. "Pointer" flow meters are available for pipes from 1/2" NB to 6" NB. Since there are no moving parts, the flow meter gives years of maintenance free service. It's performance is independent of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible.

"Pointer" has all the features required in field mountable metering equipment. These include- weather proof/ flame proof enclosure, RS 485 communication option, with 4 to 20 mA isolated Current output for flow signal transmission option for process control. The converter is available as field mounted-IP 65 protection category. An optional batching controller also available on request.

Construction Features

  • High Accuracy Flow metering
  • Optional Digital Transmission
  • Isolated 4 to 20 mA current output
  • IP 65 Field / Wall mounted Enclosure
  • 2 Line Alpha numeric back lit display
  • Flange/ sandwich type mounting
  • Easy maintenance as no moving part
  • Operates over wide range of pressure and temperature
  • Low cost against highest quality

Application

This Flow meters find varied applications where the flowing medium is difficult to handle. Major advantage of these flow meters are: zero pressure drop, No moving part and highest accuracy level at most affordable cost. Some of the major application can be described below:

  • Effluent Treatment plant
  • Sewage Treatment plant
  • Water supply Schemes
  • Pulp and Papers
  • Sugar industries and distilleries
  • Steel and Aluminium
  • Chemical/Pharmaceuticals
  • Food and Drugs

Typical Flow Rate Table

Pipe- Size (NB)

15(1/2)

25 (1)

40 (1½)

50 (2)

80 (3)

100 (4)

150 (6)

At Velocity 0.5 m/sec in LPM

~5

~15

~37

~60

~150

~235

~530

At velocity 5m/sec in LPM

~50

~150

~370

~600

~1500

~2350

~5300
