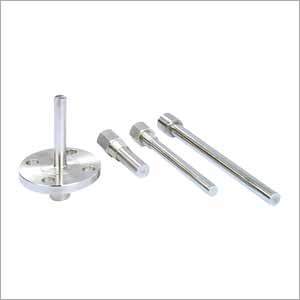

Flanged Thermowells

Flanged Thermowells
Flanged Thermowells
Product Code : 02
Product Description

Our firm specializes in providing Flanged Thermowells that are a temperature measuring instruments. Offered products are manufactured by our professionals using optimum quality components and modern technology. These are highly acclaimed among clients owing to their high performance and unmatched features. Prior to dispatching the delivery from our end, the offered Flanged Thermowells are thoroughly tested on various parameters by our quality controllers.

Features:

  • Precise measurement

  • Long working life

  • Compact design

  • Low maintenance

"Pointer" Bi-Metal Temperature gauges are economical, rugged, reliable, temperature measuring instruments. The Bi-Metal helix is properly heated, coated with viscous silicon to minimize pointer oscillation and improve temperature transmission.

Construction Features

Dial Size

63mm, 100m, 150mm & 250mm

Accuracy

+- 1.6% of full scale

Case & Bezel (IP- 65)

SS 304 Snap Action Bayonet type & SS 304 press fit type

Pressure Element

Wounded coil of Bi-Metal

Stem & Bulb

SS 316, SS 304

Stem & Bulb Dia

6mm, 8mm, 10mm & 12mm

Stem Length (Std)

Up to 300 mm

Dial

Aluminium white painted with 270 degree black scale marking

Pointer

Brass/ Alu. With black finish

Window

Plain Glass/ Toughened/ Safety glass

Joints

Argon arc welded

Mounting

Stem (Bottom), Back & Every angle

Connection

1/4 / 3 / 8  / ½ BSP/ NPT (Fix or Adjustable)

Scale Range

-30 to 50 to 600C or equivalent in F

Optional Features

  • Dual scale oC & oF available on request
  • Extra stem length on request
  • TC Connection on request

Application

Domestic & industrial heating system, hot water boiler, power plant, food & beverage industries, pharmaceutical industry etc.
