Gas Filled Temperature Gauges

Gas Filled Temperature Gauges
Gas Filled Temperature Gauges
Product Code : 12
Product Description

We are a noteworthy manufacturer, exporter and supplier of excellent quality Gas Filled Temperature Gauges. These are used for various testing applications and are available in numerous specifications to met the diverse needs of the clients. The offered products are manufactured by our seasoned professionals using high quality components and modern technology. To ensure their flawlessness, the offered gauges are tested on various parameters by our quality controllers. Our precious clients can avail these Gas Filled Temperature Gauges at market leading prices.

Features:

  • Accurate measurement

  • Compact design

  • High strength

  • Long working life



150MM Bottom Mounting

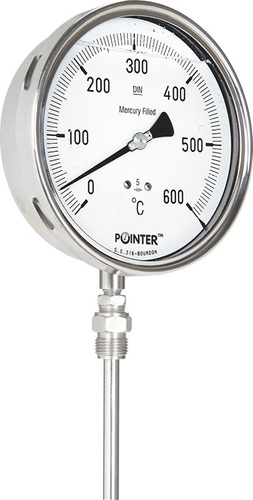

"Pointer" Mercury/ Gas filled Temperature Gauges are economical, rugged, reliable and accurate measuring instruments are made of bulb, transmitting capillary and flat bourdon or coiled bourdon tube which are pressure fulled with Mercury/Inert Gas. The system is pressurized with mercury/Inert Gas. Variation of he ambient temperature are compensated by means of a Bi- metal link between movement mechanism & Burdon tube.

Construction Features

Dial Size

63mm, 100m, 150mm & 250mm

Accuracy

+- 1% of full scale

Case & Bezel (IP- 65)

SS 304 Snap Action Bayonet type

Temp. Element

Mercury/Gas actuated

Stem & Bulb

SS 316

Stem & Bulb Dia

6mm, 8mm, 10mm & 12mm

Stem Length (Std)

Up to 300mm

Capillary Material

MS/SS 316 Micro bore

Capillary Protection

SS 304 Tubing, PVC, SS Armored

Dial

Aluminium white pained with 270 degree black scale marking

Pointer

Al./ Brass, Zero Adjustment/ Micro Zero Adjustment pointer

Window

Toughened/Safety glass

Joints

Argon arc welded

Mounting

Stem (Bottom), Back & Surface with capillary extension

Connection

1/4" / 3/8 "/ 1/2" BSP/ NPT (Adjustable)

Scale Range

-30 to 50C to 650 C or equivalent in F

Optional Features

  • Anti vibration fitting, Dual scale oC & oF available on request
  • Liquid filled case with Glycerin or Silicon on request
  • Alarm contact type & Capillary extension on request
  • Extra Stem length on request
  • Extra Capillary length on request

Applications

Pharmaceutical industries, Chemical & Petrochemicals, Fertilizers & Refineries, Filters for liquid control systems and all Process Industries.
