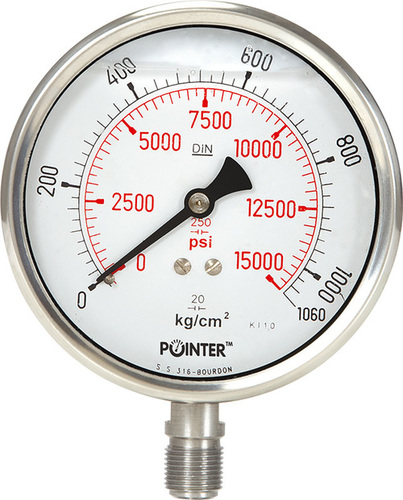

High Pressure Glycerin Filled Gauges

High Pressure Glycerin Filled Gauges
High Pressure Glycerin Filled Gauges
Product Code : 10
Product Description

We are a coveted manufacturer, exporter and supplier of optimum quality High Pressure Glycerin Filled Gauges that are used in various industrial applications. These are manufactured as per the set industry standards using premium quality components and modern machinery as per the set industry norms. The offered products are available in different specifications to meet the diverse needs of the clients. Offered High Pressure Glycerin Filled Gauges are provided at industry leading prices.

Features:

  • Long working life

  • Correct measurement

  • High performance

  • Compact design

"Pointer" High Pressure Glycerin filled gauges are Specially for High Pressure Application & Testing of High Pressure Devices. It is Mfg. & Calibrate under Delectated (imported) High Pressure System. It means Performance of the gauge enhance the reliable and integrated for long periods under extreme operating condition.

Construction Features

Dial Size

100mm, 150mm & 250mm

Accuracy

+-6% of full scale

Case & Bezel (IP-65)

SS304, Snap Action Bayone type

Movement

SS 304

Pressure Element

SS 316

Socket

SS 304/ SS316

Dial

Aluminium white painted wih 270 degree black scale marking

Pointer

Al./Brass with black finish

Window

Acrylic/Safety glass

Blow Out Protection

On top at 0.6 kg/cm2

Over Load Protection

115% of f.s.d.

Joints

Argon arc welded

Mounting

Stem (Bottom), Surface, Panel Mounting Flush Panel (Bracket Type)

Connection

3/8/ " 1/2 " BSP/NPT

Scale Range

Pressure up to 15000 PSI to 80000 PSI



Model Option

SP

All SS Models with Heavy Duty Parts

Application

Specially in High Pressure Application, Hydraulic Pressure, Hydraulic Power Packs, High Pressure Pumps, Testing of High Pressure Devices
