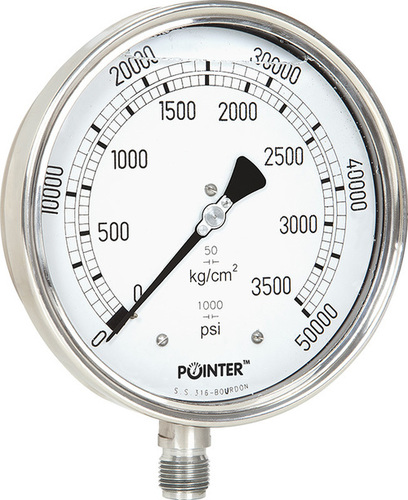

High Pressure pressure Gauges

High Pressure pressure Gauges
High Pressure pressure Gauges
Product Code : 11
Brand Name : Pointer
Product Description

With continuous innovation and amelioration of technology and workforce, we have carved a niche for ourselves in the domain by manufacturing, exporting and supplying High Pressure Gauges. These are highly demanded in various industries for measuring pressure and are manufactured using premium quality components and modern technology in compliance with the defined ISO 9001:2008 standards. Offered products are available in various technical specifications to meet the diverse needs of the clients. We are offering these High Pressure Gauges at affordable costs.

Features:

  • Accurate measurement

  • High strength

  • Long working life

  • Compact design



100MM Bottom Mounting

"Pointer" High Pressure Glycerin filled gauges are Specially for High Pressure Application & Testing of High Pressure Devices. It is Mfg. & Calibrate under Delectated (imported) High Pressure System. It means Performance of the gauge enhance the reliable and integrated for long periods under extreme operating condition.

Construction Features

Dial Size

100mm, 150mm & 250mm

Accuracy

+-6% of full scale

Case & Bezel (IP-65)

SS304, Snap Action Bayone type

Movement

SS 304

Pressure Element

SS 316

Socket

SS 304/ SS316

Dial

Aluminium white painted wih 270 degree black scale marking

Pointer

Al./Brass with black finish

Window

Acrylic/Safety glass

Blow Out Protection

On top at 0.6 kg/cm2

Over Load Protection

115% of f.s.d.

Joints

Argon arc welded

Mounting

Stem (Bottom), Surface, Panel Mounting Flush Panel (Bracket Type)

Connection

3/8 / 1/2 BSP/NPT

Scale Range

Pressure up to 15000 PSI to 80000 PSI



Model Option

SP

All SS Models with Heavy Duty Parts

Application

Specially in High Pressure Application, Hydraulic Pressure, Hydraulic Power Packs, High Pressure Pumps, Testing of High Pressure Devices
