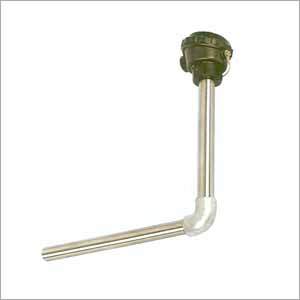

L Shape Type Thermocouple

L Shape Type Thermocouple
L Shape Type Thermocouple
Product Code : 20
Product Description

Banking on our immense domain expertise, we have been betrothed in offering premium quality L Shape Type Thermocouple. It is suitable for fluid and gaseous media under moderate mechanical load and normal chemical traces. In order to manufacture this product, our professionals use excellent quality basic material and latest machinery. To ensure its flawlessness, the provided product is tested on varied parameters by our quality controllers. Offered L Shape Type Thermocouple is available in numerous thicknesses to meet the diverse needs of the clients.

Features:

  • Heat resistance

  • High tensile strength

  • Fine finish

  • Durability

"Pointer" Thermocouples are suitable for fluid and gaseous media under moderate mechanical load and normal chemical traces. Thermocouple are temperature sensors which directly supply a voltage dependent on temperature due to their thermoelectric properties.

Construction Features

Enclosure

Die Cast Aluminium

Protection

IP, Flameproof Grade IIA, IIB & IIC

Sensor Element

J,K,E,T,N (Simplex or Duplex)

J (Fe-CuNi)- 800C

K (Nicr- Ni)- 1200C

E (Nicr- CuNi)- 800C

T (Cu-CuNi)- 400C

N (NiCrSi-NiSi)- 1200C

Cold End

Terminated in to ceramic terminal block

Stem Material

SS 316/ SS 304, Inconel, Monel, Haystalloy

Stem Dia

6mm, 8mm, 100 & 12mm

Stem Length

300mm Standard

Hot Junction

Ungrounded unless specified

Configuration

2 wire, 3 wire & 4 wire

Connection

1/4" / 3/8 "/ 1/2" BSP/ NPT (Adjustable)

Range

00C to 1200C

Optional Features

  • Head mounted transmitter can be mounted
  • 'L' Shape or any other shape available on request

Application

Machinery, Plant & Tank, Construction, energy & power plant, chemical industries, Sanitary, heating & air conditioning
