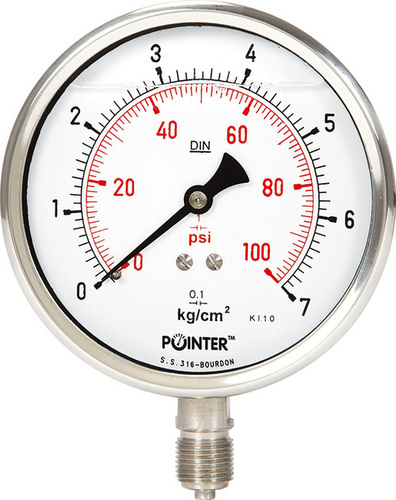

Liquid Filled Pressure Gauges

Liquid Filled Pressure Gauges
Liquid Filled Pressure Gauges
Product Code : 09
Product Description

Backed by a diligent team of professionals, we have been able to manufacture, export and supply high quality Liquid Filled Pressure Gauges that are ideal for dampening the effect of vibration & pulsation. These are available in various specifications to meet the diverse needs of the clients. Offered products are manufactured by our seasoned professionals inline with the defined ISO standards using high grade parts. Before delivering these pressure gauges to our clients, these are thoroughly tested on various parameters by our quality controllers. We are offering these Liquid Filled Pressure Gauges at market leading prices.

Features:

  • Correct measurement

  • Long working life

  • High strength

  • Low maintenance

"Pointer" Glycerin filled pressure gauges are ideal for dampening the effect of vibration & pulsation. It also lubricate the movement & internal parts which extends the life of gauge. It enhance he reliability and integrity of measuring system for long periods under extreme operating condition.

Construction Features

Dial Size

63mm, 100mm, 150mm & 250mm

Accuracy

+-1% of full scale

Case & Bezel (IP-65)

SS 304, Crimp type/ Snap Action Bayonet type

Movement

SS 304/ Brass (63mm)

Pressure Element

SS 316 (< 70 bar 'C' Type/ > 70 bar Coil type)

Socket

SS 304/ SS 316

Dial

Aluminium white painted with 270 degree black scale marking

Pointer

Al./ Brass with black finish

Window

Acrylic/ Safety glass

Blow Out Protection

On top at 0.6 kg/cm2

Over Load Protection

125% of f.s.d. For < 150kg/cm2


115% of f.s.d. For > 150 kg/cm2

Joints

Argon arc welded/Brass silver brazed

Mounting

Stem (Bottom), Surface, Panel Mounting, Flush Panel (Bracket Type)

Connection

¼âہ¡Ãƒâ€šÃ‚½/3/8âہ¡ ½ / ½âہ¡Ãƒâ€šÃ‚½ BSP/NPT

Scale Range

Vacuum, Compound & Pressure up to 1400kg/cm2

Model Option

SP

All SS Models with Heavy Duty Parts

LDS

Model with SS-304 Case, (Bezel, Socket, SS-316 Bourdon & Brass Movement

Eco

Model in Carbon Steel (Nickel Plated) Case, SS-304 Bezel, Sockets & Brass Movement

Application

Air Compressor, Hydraulic Presses, Pumps, Industrial Power Plants, Marine engines, Pipelines and Transmission Stations where Vibration & Pulsation are destructive factors.
