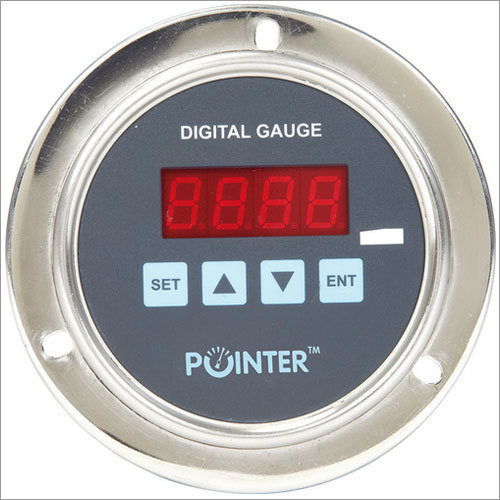

Panel Mount Pressure Gauge

Panel Mount Pressure Gauge
Panel Mount Pressure Gauge
Product Code : 03
Product Description

Accredited with ISO 9001:2008 certification, we are instrumental in offering premium quality Panel Mount Pressure Gauge that is incorporated in various industrial applications for measuring pressure. The offered pressure gauge is manufactured using high grade raw material and latest technology as per the set industry standards. Prior to dispatching the delivery from our end, the offered Panel Mount Pressure Gauge is tested on various parameters to ensure its flawlessness. This product is available in different specifications to meet the varied needs of the clients.

Features:

  • Compact design

  • High strength

  • Precise measurement

  • Longevity

Construction Features

Selection of Engineering Units

Kg/cm2, Bar, PSI

Enclosure

Aluminium Anodised, Light weight/ SS 304

Display

8 x 2 Dot matrix display, shows pressure, unit & low battery

Media

It works with any media that will not adversely affect SS 316

Accuracy

+- 0.15% & 0.5% or better of full scale at calibrated temperature

Power

Standard 9 V 150 mAh, Ni MH with charger or 230 VAC, 50 Hz

Connection

1/4 BSP Male (others on request)

Over pressure

130% of specified range

4-20 mA

Available (Optional)

SPDT Relay output

Available (Optional) Provides 2 adjustable SPDT relay

Diaphragm seals

Various size, style and MOC available

Application

Used for re-calibration of general service pressure gauges or any other pressure instruments.
