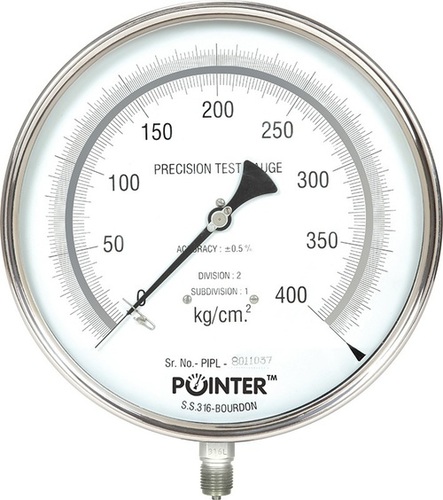

Precision Test Pressure Gauges

Precision Test Pressure Gauges
Precision Test Pressure Gauges
Product Code : 13
Product Description

Since our inception, we have been instrumental in offering premium quality Precision Test Pressure Gauges that are used for measuring pressure in various industrial applications. These are fabricated using high grade components and advanced technology as per the set industry standards. In ahead of dispatching the delivery from our end the offered products are tested thoroughly to ensure their flawlessness. Our precious clients can avail these Precision Test Pressure Gauges at rock bottom prices.

Features:

  • Exact measurement

  • Long working life

  • Compact design

  • Easy to use

"Pointer" Precision Test Pressure Gauges are extremely sensitive and highly accurate with adjustable knife edge pointer and mirror bends on the dial to assure precise readings and to eliminate parallax error. Also suitable for gaseous and liquid media, particularly for testing and calibration.

Construction Features

Dial Size

150mm &250mm

Accuracy

+- 0.25% & +- 0.5% of full scale

Case & Bezel (IP- 65)

SS 304 Snap Action Bayonet type

Movement

SS 316, High Precision with Bi- Metal Link for Temperature Compensation

Pressure Element

SS 316 (< 70 bar 'C' Type/ > 70 bar Coil Type)

Socket

SS 316

Dial

Aluminium white painted with 270 degree black scale marking with mirror scale

Pointer

Al. knife edge Micro zero adjustment type

Window

Toughened/Safety glass

Blow Out Protection

Back side at 0.6 kg/cm2

Joints

Argon arc welded

Mounting

Stem (Bottom), Surface, Panel Mounting, Flush Panel (Bracket Type)

Connection

1/2 BSP/ NPT

Scale Range

Vacuum, Compound & Pressure up to 1000 kg/cm2

Least Count

As per standard chart accuracy +- 0.25% & +- 0.5%



Application

Used for re- calibration of general service pressure gauges or any pressure related instruments.
