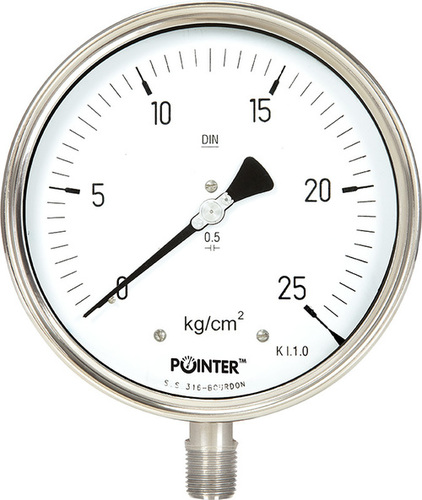

Weather Proof Pressure Gauges

Weather Proof Pressure Gauges
Weather Proof Pressure Gauges
Product Code : 24
Product Description

Supported by a dexterous team of professionals, we have emerged as a coveted manufacturer, exporter of premium quality Weather Proof Pressure Gauges that are used to measure the pressure of corrosive environment and gaseous of liquid media. These gauges are provided in varied specification as per the diverse needs of the clients. The offered products are manufactured using the best quality components and modern technology at our hi-tech manufacturing unit. We are offering these Weather Proof Pressure Gauges at cost-effective prices.

Features:

  • Compact design

  • Long working life

  • Accurate measurement

  • Precise dimensions

"Pointer" Weather proof gauges suitable for corrosive environment and gaseous of liquid media that will no obstruct the pressure system.

Construction Features

Dial Size

63mm, 100mm, 150mm & 250mm

Accuracy

+- 1% of full scale

Case & Bezel (IP-65)

SS 304 Snap Action Bayonet type

Movement

SS 304

Pressure Element

SS 316 (< 70 bar 'C' /Type/ > 70 bar Coil type)

Socket

SS 304/ SS316

Dial

Aluminium white painted with 270 degree black scale marking

Pointer

Al./ Brass, Zero adjustment/ Micro Zero Adjustment Pointer

Window

Toughened/ Safety glass

Blow Out Protection

63mm on top & 100 & 150mm on back side at 0.6 kg/cm2

Over Load Protection

125% of f.s.d. For < 150kg/cm2


115% of f.s.d. For > 150 kg/cm2

Joints

Argon arc welded

Mounting

Stem (Bottom), Surface, Panel Mounting, Flush Panel (Bracket Type)

Connection

1/4, 3/8,1/2 BSP/NPT

Scale Range

Vacuum, Compound & Pressure up to 1400 kg/cm2

Optional Features

  • SS 316 Case & Bezel available on request
  • Ammonia (NH3), Oxygen (O2), Freon Scale available on request.
  • Eco Model in Carbon Steel & SS Case available on request.

Application

Chemical & Petrochemicals, Power generation, Pollution Control Equipment, Oil exploration and any other application requiring fine quality, long lasting, pressure measurement etc.
